SVR-960 |
|
|
Samsung 9 Channels Pentaplex Mpeg4 Network Stand-Alone Digital Video Recorder
| [ Details ]
|
|
| Real-time display 225 fps(PAL)/270(NTSC)Display Rate MPEG-4 compression,Display Resolution:704 x576(PAL)/704 x 480(NTSC) Recording Rate: Up to 100fps@704 x576(PAL)/Up to 120fps@704 x 480(NTSC) Up to 200fps@704 x 288(PAL)/Up to 240fps@704 x 240(NTSC) Up to 225fps@352 x 288(PAL)/Up to 270fps@352 x 240(NTSC) Various Recording Mode (Manual / Schedule / Event / Emergency) Used Friendly Setup & Operation, On Screen Display by Stylish Icon 9 Channels BNC Video In,2 Channels BNC Video Out,RCA & VGA Output Display Multiscreen 1/ 4 / 9,OSD (Multi-Language) 9 Channels Audio Inpt, 1 Channels Audio Output 9 Channels Sensor Input, 4 Channels Alarm Output 2 Sata HDDs bay internal capacity,Easy back-up with 2 USB ports and DVD+RW Network Protocol: TCP/IP, DHCP, SMTP Powerful Remote Monitoring With SVR Manager Program Built-in Web-server, Support CMS Software (SNM-128S/P) Integrated Network Multi-view, Multi-user Remote Viewing Various Input controllers Including PC Mouse Remote Control and keyboard Controller (SCC-3100A) Serial Interface: RS232C, RS-485/422 (RJ-45) Dimension: 455mm x 88mm x 388mm, Weight 8.9kg Power Consumption Max 65W With 1 HDD Voltage:100-240V AC
|
SVR-1660 |
|
|
Samsung 16 Channels Pentaplex Mpeg4 Network Stand-Alone Digital Video Recorder
| [ Details ]
|
|
| Real-Time Display 400 fps (PAL) /480 fps (NTSC) Display Rate
MPEG-4 compression ,Display Resolution:704 x 576 (PAL) / 704 x 480 (NTSC)
Recording Rate:
Up to 100fps@704 x 576(PAL)/Up to 120fps@704 x 480(NTSC)
Up to 200fps@704 x 288(PAL)/Up to 240fps@704 x 240(NTSC)
Up to 400fps@352 x 288(PAL)/Up to 480fps@352 x 240(NTSC)
Various Recording Mode (Manual / Schedule / Event / Emergency)
Used Friendly Setup & Operation, On Screen Display by Stylish Icon
Display Multiscreen 1/ 4 / 9,OSD (Multi-Language)
16 Channels BNC Video In,2 Channels BNC Video Out,VGA Output &16 Channels Video Loop Out
16 Channels Audio Inpt, 1 Channels Audio Output
16 Channels Sensor Input, 4 Channels Alarm Output
4 Sata HDDs bay internal capacity
Easy back-up with 2 USB ports and DVD+RW
Powerful Remote Monitoring With SVR Manager Program
Built-in Web-server, Support CMS Software (SNM-128S/P)
Integrated Network Multi-view, Multi-user Remote Viewing
Various Input controllers Including PC Mouse Remote Control and keyboard Controller (SCC-3100A)
Network Protocol: TCP/IP, DHCP, SMTP
Serial Interface: RS232C, RS-485/422 (RJ-45)
Dimension: 430mm x 88mm x 465mm, Weight 10.9kg
Power Consumption Max 75W With 1 HDD
Voltage:100-240V AC
|

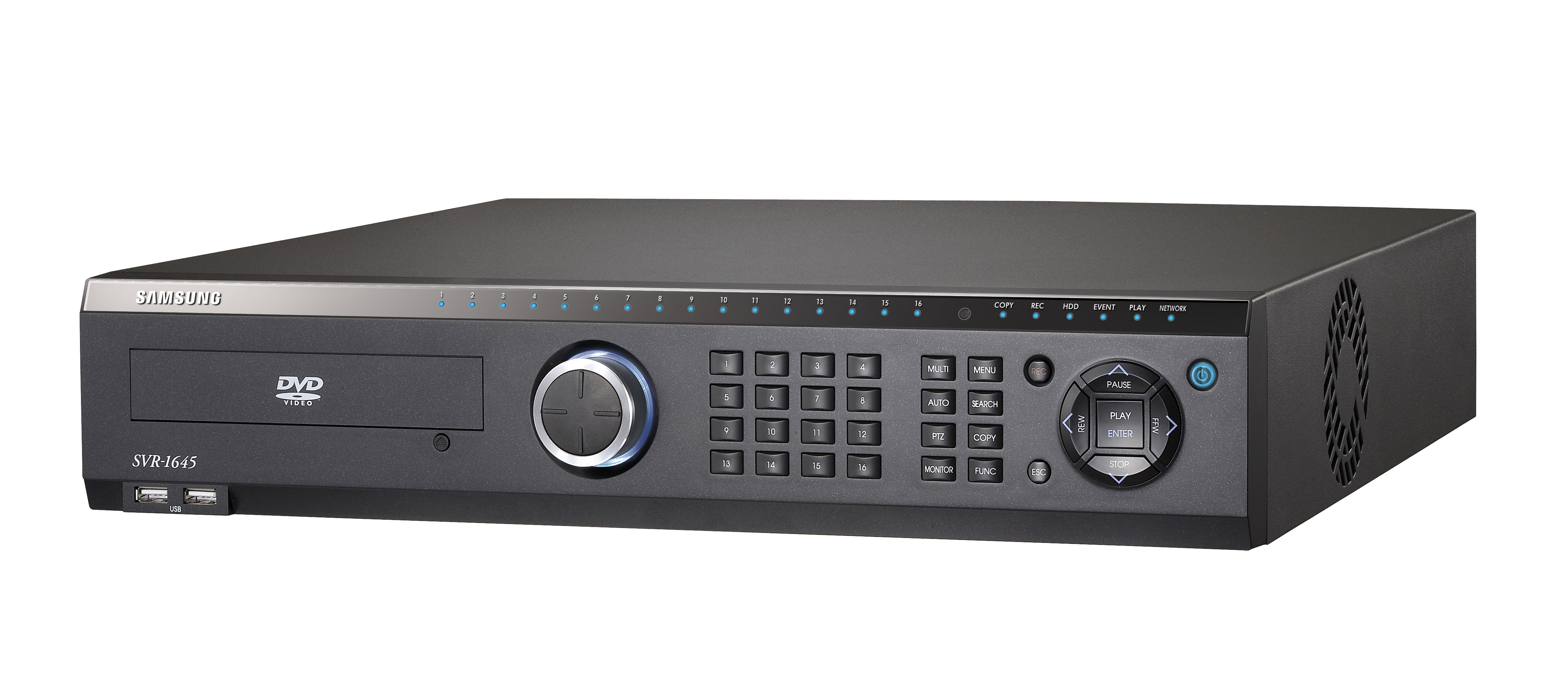

SVR-1645 |
|
|
Samsung 16 Channels Pentaplex Mpeg4 Network Stand-Alone Digital Video Recorder
| [ Details ]
|
|
| Real-Time Display 400 fps (PAL) /480 fps (NTSC) Display Rate
MPEG-4 compression ,Display Resolution:704 x 576 (PAL) / 704 x 480 (NTSC)
Recording Rate:
Up to 100fps@704 x 576(PAL)/Up to 120fps@704 x 480(NTSC)
Up to 200fps@704 x 288(PAL)/Up to 240fps@704 x 240(NTSC)
Up to 400fps@352 x 288(PAL)/Up to 480fps@352 x 240(NTSC)
Various Recording Mode (Manual / Schedule / Event / Emergency)
Used Friendly Setup & Operation, On Screen Display by Stylish Icon
Display Multiscreen 1/ 4 / 9,OSD (Multi-Language)
16 Channels BNC Video In,2 Channels BNC Video Out,VGA Output &16 Channels Video Loop Out
16 Channels Audio Inpt, 1 Channels Audio Output
16 Channels Sensor Input, 4 Channels Alarm Output
2 Sata HDDs bay internal capacity
Easy back-up with 2 USB ports and DVD+RW
Powerful Remote Monitoring With SVR Manager Program
Built-in Web-server, Support CMS Software (SNM-128S/P)
Integrated Network Multi-view, Multi-user Remote Viewing
Various Input controllers Including PC Mouse Remote Control and keyboard Controller (SCC-3100A)
Network Protocol: TCP/IP, DHCP, SMTP
Serial Interface: RS232C, RS-485/422 (RJ-45)
Dimension: 455mm x 88mm x 388mm, Weight 8.9kg
Power Consumption Max 75W With 1 HDD
Voltage:100-240V AC
|
SVR-1680 |
|
|
Samsung 16 Channels Pentaplex Mpeg4 Network Stand-Alone Digital Video Recorder
| [ Details ]
|
|
| Real-Time Display 400 fps (PAL) /480 fps (NTSC) Display Rate
MPEG-4 compression ,Display Resolution:704 x 576 (PAL) / 704 x 480 (NTSC)
Recording Rate:
Up to 400fps@704 x 576(PAL)/Up to 120fps@704 x 480(NTSC)
Up to 400fps@704 x 288(PAL)/Up to 240fps@704 x 240(NTSC)
Up to 400fps@352 x 288(PAL)/Up to 480fps@352 x 240(NTSC)
Various Recording Mode (Manual / Schedule / Event / Emergency)
Used Friendly Setup & Operation, On Screen Display by Stylish Icon
Display Multiscreen 1/ 4 / 9,OSD (Multi-Language)
16 Channels BNC Video In,2 Channels BNC Video Out,VGA Output &16 Channels Video Loop Out
16 Channels Audio Inpt, 1 Channels Audio Output
16 Channels Sensor Input, 4 Channels Alarm Output
4 Sata HDDs bay internal capacity
Easy back-up with 2 USB ports and DVD+RW
Powerful Remote Monitoring With SVR Manager Program
Built-in Web-server, Support CMS Software (SNM-128S/P)
Integrated Network Multi-view, Multi-user Remote Viewing
Various Input controllers Including PC Mouse Remote Control and keyboard Controller (SCC-3100A)
Network Protocol: TCP/IP, DHCP, SMTP
Serial Interface: RS232C, RS-485/422 (RJ-45)
Dimension: 430mm x 88mm x 465mm, Weight 10.9kg
Power Consumption Max 75W With 1 HDD
Voltage:100-240V AC
|

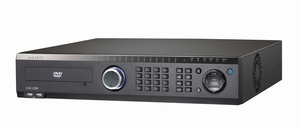

SVR-3200 |
|
|
Samsung 32 Channels Pentaplex Mpeg4 Network Stand-Alone Digital Video Recorder
| [ Details ]
|
|
| Real-Time Display 800 fps (PAL) /960 fps (NTSC) Display Rate
MPEG-4 compression ,Display Resolution:704 x 576 (PAL) / 704 x 480 (NTSC)
Recording Rate:
Up to 400fps@704 x 576(PAL)/Up to 120fps@704 x 480(NTSC)
Up to 800fps@704 x 288(PAL)/Up to 240fps@704 x 240(NTSC)
Up to 800fps@352 x 288(PAL)/Up to 480fps@352 x 240(NTSC)
Various Recording Mode (Manual / Schedule / Event / Emergency)
Used Friendly Setup & Operation, On Screen Display by Stylish Icon
Display Multiscreen 1/ 4 / 9,OSD (Multi-Language)
32 Channels BNC Video In,4 Channels BNC Video Out,VGA Output & Video Out
16 Channels Audio Input, 1 Channels Audio Output
16 Channels Sensor Input, 4 Channels Alarm Output
4 Sata HDDs bay internal capacity
Easy back-up with 2 USB ports and DVD+RW
Powerful Remote Monitoring With SVR Manager Program
Built-in Web-server, Support CMS Software (SNM-128S/P)
Integrated Network Multi-view, Multi-user Remote Viewing
Various Input controllers Including PC Mouse Remote Control and keyboard Controller (SCC-3100A)
Network Protocol: TCP/IP, DHCP, SMTP
Serial Interface: RS232C, RS-485/422 (RJ-45)
Dimension: 430mm x 88mm x 465mm, Weight 10.9kg
Power Consumption Max 75W With 1 HDD
Voltage:100-240V AC
|
|
